Salutations,

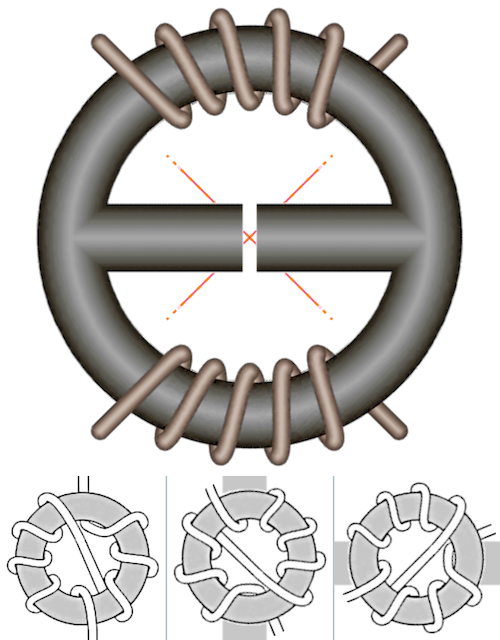

This is only a brief post meant to illustrate some possible avenue of IH-driven solution trying to vaporize noble molecules coating deposited on a heat-resistant substrate, ideally shapped as a disposable tape intended to pass between the 2 poles of an IH Energy Injector as schematized next:
[ https:// i.postimg.cc/XqvSq0WW/Egzoset-s-1-Phase-2-Poles-Hybrid-Toro-d-Duplex-IH-Driver-with-RF-Choking-2020-Oct-21-500x640.png ]
One trick yet to be evaluated might be the double-function of a flux-concentrating structure seving both for RF Choking and Energy Injection features, though if that works then some space could be saved i presume.
M'yeah, there's obviously a most crucial components actually missing. Maybe my proportions got a bit offset but i'll bet most readers will spontaneously understand where to put it if the magnetic circuits ain't going to cancel, which wouldn't be of much use - would it!...
Good day, have fun!! 8)
